KKO ver 5 with DTMF extension board
New! Emergency Calling System - premiere : May 2014/May 2016
Nowadays, there are following accessible products in CONFERENCE CARDS domain dedicated for Aastra's and Ericsson's exchanges:
Emergency calling system based on KKO ver5 card with DTMF extension board for MD110/MX-ONE
New solution - Emergency Calling System with new KKOv5 cards.
The Emergency Calling System consists of the KKO card hardware version 5 with DTMF extension board which makes possible
to read and register up to 30 channels simultanously. The cooperating application is ActionClient SW.
The Emergency System is a result of our long-term experiences with conference and dispatcher systems based on the KKO card.
It is dedicated to quick calling and picking feed back from many (several hundred) participants in very short time.
Proper internal prerecorded voice announcement is emitted to every picked number. It informs about the content of
the action and possible answers. The participant confirms the call by DTMF code. Additionally, the SMS
can be sent by cooperating SMS gateway. The Emergency Calling System is destined for following applications :
The system makes possible to call many groups in many databases. Every group have own voice announcement. Every action can be executed in 1 of 3 modes (e.g test, practise and normal emergency). Every mode have own declared announcement. Every group participant have possible 1 to 4 numbers declared (e.g. company number, company mobile, private mobile etc). The parameters for every number are individually saved in the system database. It can be : calling time, break time, number of repetitions, SMS mode etc. The called number confirms the call by DTMF code. It means following contents/contexts :
The view of KKO version 5 card with DTMF receivers extension board:
As a result of action running, the whole group is called. The action can be repeated for unpicked or rejected calls. Every participant sends DTMF code as an answer or call confirmation. These answers are collected in memory and in the file and proper printout is formatted. The printing includes subsriber's data, an answer (DTMF code), date, time, group number etc for given action, calling time, time of answering for every number, SMS sending time etc. Everything is settable in ActionClient software. The emergency system is able to cooperate with 1 to 4 KKOv5 cards. Many KKO cards makes calling procedure shorter because more calls is generated in the same time.

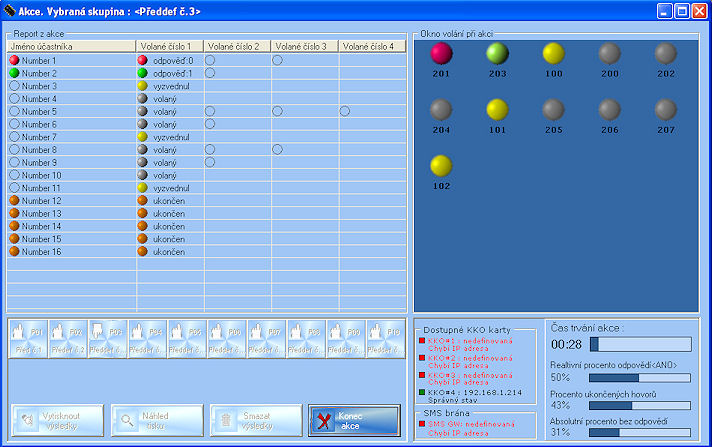

Action window view :
As mentioned, the Emergency Call System bases on special version of KKO card with DTMF extension. Next, the ActionClient application is needed. It is free available here
Pilot installation of Emenrgency System was done in 2014; normally the system is available from May 2016.
KKO ver4 ISDN for : MD110/MX-ONE Telephony Switch and Telephony Server
This is quite new generation of conference card dedicated for MX-ONE Telephony Switch and Telephony Server and older MD110 exchanges. The KKO hardware version 4 implements ISDN protocol and so far Ethernet interface. All old functions and features known in previous versions are the same in version 4. Additionally there are following new features:
The firmware and software from 4.20 version is quite new. This card is not compatible with former versions of firmware and software (KKOv2 and KKOv3). However it is possible to upgrade (migration) from older KKOv2 and KKOv3 to new KKO4 ISDN. All subscriber's database can be copied and automatically converted into new format.
Beginning on 4.25 version (May 2013) the kClient software, beside big conference supports Dispatcher Connections based on CSTA Phase III (Computer Supported Telecommunication Applications). The graphic user interface is changed too.
The KKO4 conference cards are available in two capacity versions too:
The KKO30 version makes possible to work with maximum 30 PCM channels and connects
with one TLU-76 interface card in the exchange. Number of simultanous conferences equals 5
with maximum of 30 channels for both conferences.
The KKO60 version makes possible to work with maximum 60 PCM channels and connects
with two TLU-76 interface cards in the exchange. Number of simultanous conferences equals 5
with maximum of 60 channels for both conferences.
This is possible to define in the order which capacity version is needed (30 or 60).

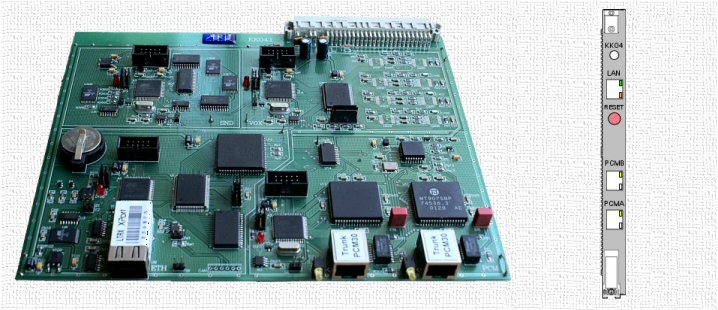

View of the KKO card in hardware version 4 (with front panel for MX-ONE) is as follow:
The KKO card version 4 is accessible from August 2010.
KKOBP ver4 ISDN for : Business Phone 250
This is quite new generation of conference card dedicated for
Business Phone exchange.
This is twin version for KKO4 for MX-ONE/MD exchange.
The KKO hardware version 4 implements ISDN protocol and so far Ethernet interface.
All old functions and features known in previous versions are the same
in version 4. Additionally there are following new features:
The firmware and software from 4.20 version is quite new. This card is not compatible with former versions of firmware and software (KKOv2 and KKOv3). However it is possible to upgrade (migration) from older KKOv2 and KKOv3 to new KKO4BP ISDN. All subscriber's database can be copied and automatically converted into new format.
The KKO4 conference cards are available in two capacity versions too:
The KKO30 version makes possible to work with maximum 30 PCM channels and connects
with one interface card in the exchange. Number of simultanous conferences equals 5
with maximum of 30 channels for both conferences.
The KKO60 version makes possible to work with maximum 60 PCM channels and connects
with two interface cards in the exchange. Number of simultanous conferences equals 5
with maximum of 60 channels for both conferences.
This is possible to define in the order which capacity version is needed (30 or 60).

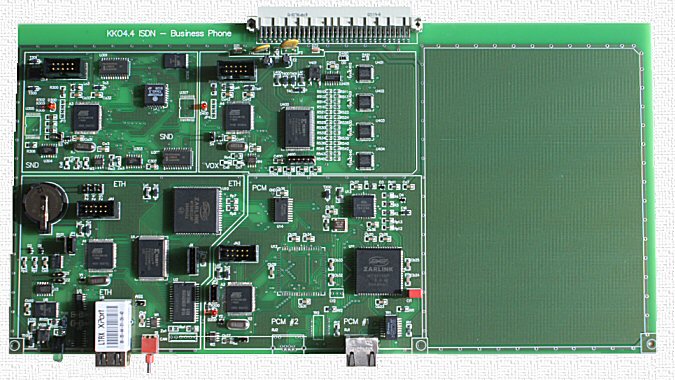

View of the KKO4BP card in hardware version 4 is as follow:
The KKO card version 4 is accessible from July 2011.
KKO ver3 for : MD110/MX-ONE Telephony Switch
This is a new generation of conference card dedicated for Ericsson's MD110 Consono or MX-ONE Telephony Switch version of phone exchange. The KKO hardware version 3 is equiped with Ethernet interface instead traditional RS232 and it makes possible to supervising the conference via network directly. All the functions and features known in version 2 are the same in version 3. The firmware and software from x.14 version is compatible with both types of hardware. Hardware version is recognized automatically, so it is possible to upgrade your KKO system both in hardware version 2 and hardware version 3 from the same instal files.
The KKO conference cards are available in two capacity versions :
The KKO30 version makes possible to work with maximum 30 PCM channels and connects
with one TLU-76 interface card in the exchange. Number of simultanous conferences equals 2
with maximum of 30 channels for both conferences.
The KKO60 version makes possible to work with maximum 60 PCM channels and connects
with two TLU-76 interface cards in the exchange. Number of simultanous conferences equals 2
with maximum of 60 channels for both conferences.
This is possible to define in the order which capacity version is needed (30 or 60).

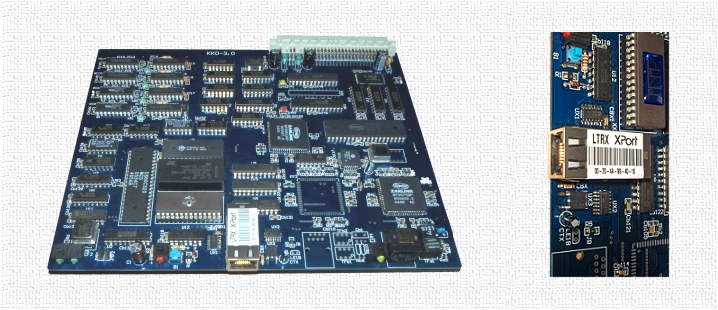

View of the KKO card in hardware version 3 is as follow:
The KKO card version 3 is accessible from November 2006.
KKO ver2 for MD110
This is a basic version of our conference cards designed for MD110 Consono Exchange. Communication with external software is via RS232 serial interface in this case. The KKO makes possible to carry out two simultaneous voice conferences for up to 60 subscribers. Recording and context playing of user announcements is standard possibility.

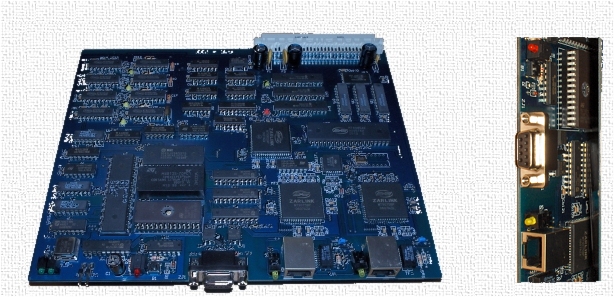

View of the KKO card in hardware version 2 is as follow:
For details see:
The newest firmware and software you are able to download from proper side. This card is accessible all the time at the moment.
KKO ver2 for Business Phone
This is a basic version of our conference cards designed for Business Phone Exchange. It makes possible to carry out two simultaneous voice conferences for 30 or 60 subscribers. It is posible to record and context play user's announcements too. From practical point of view, all the functions, all conference features etc. are identical like a KKO MD. The diferent are only format of PCB and configuration of power pins in magazine.

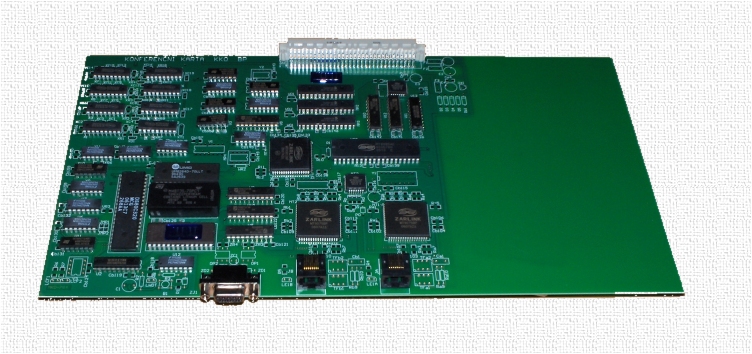

View of the KKO BP card is as follow:
For details see:
*) Special thanks to Mr Sylwester Chmielewski from ICT firm.
The newest firmware and software you are able to download from proper side. This card is accessible all the time at the moment.
ACB and ACB BP
Conference card designed for Ericsson MD 110 Consono and Business Phone exchanges respectively. ACB makes it possible to carry out large voice conference up to 119 subscribers. The ACB is not recommended for new design.
The ACB card is accessible only for special order.

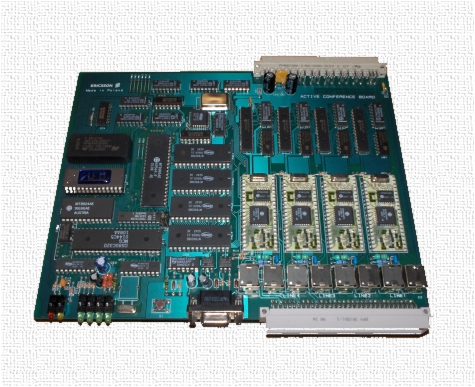

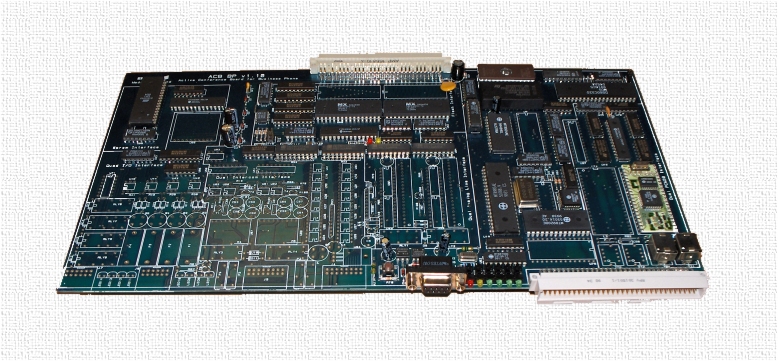

View of the ACB and ACB BP cards is as follow:
